01
Door opening and cabinet width
The cabinet internal width, depth and door opening decide which unit fits. A unit made for one opening will not work in another, so choose the unit before the carcass is cut.
Kitchen Fittings / Pull Out Systems / Corner Units
Magic Corner Kitchen Unit — Corner Pull-Out Systems for Modular Kitchens
How magic corner and corner pull-out systems work, how to pick the right type and what to confirm before the carcass is cut.

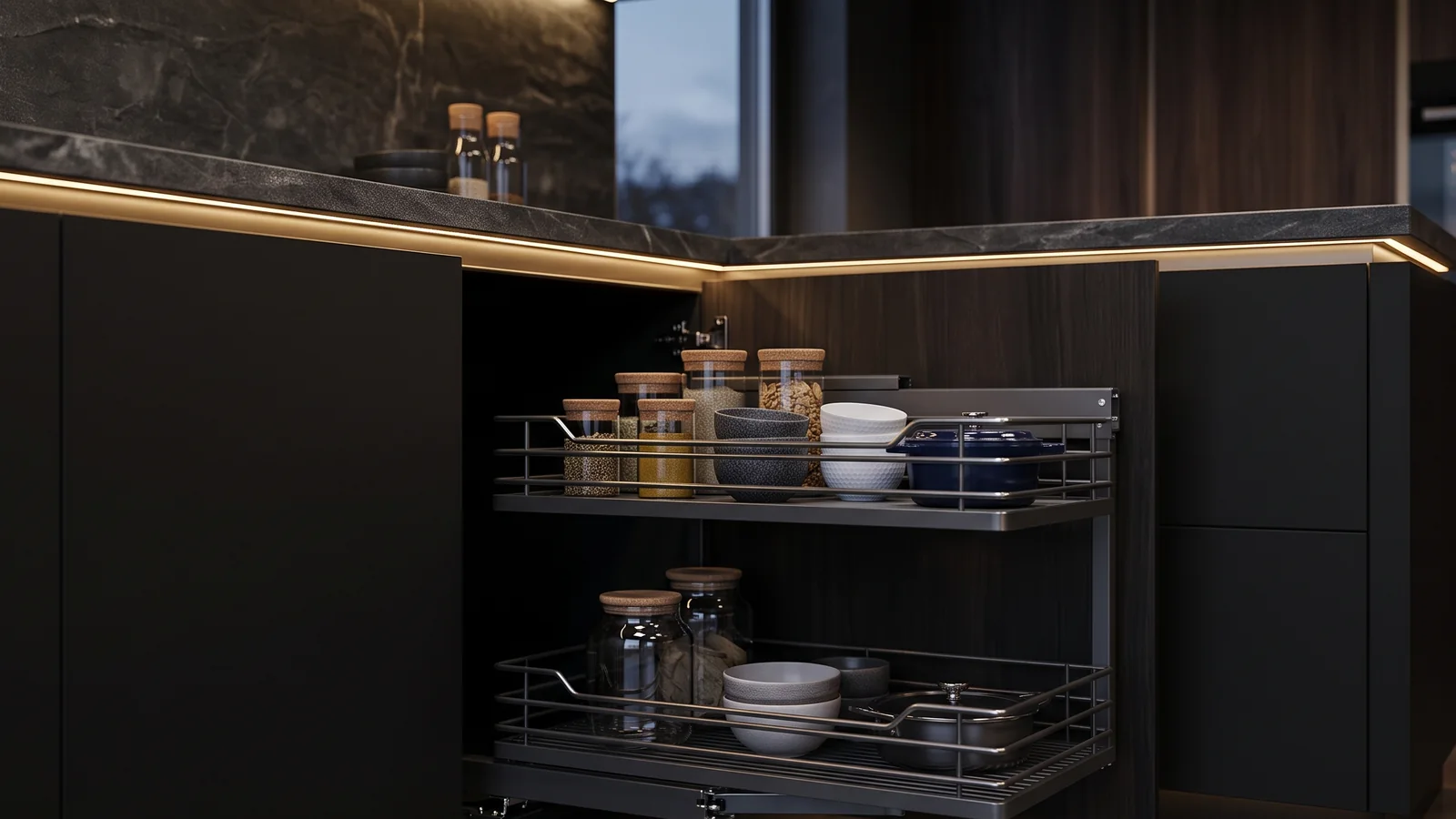

A magic corner is a pull-out system for a blind corner base cabinet: the front baskets swing out with the door and the rear baskets slide forward, so everything stored in the corner comes to the opening. It replaces a fixed shelf, which leaves most of a corner cabinet out of reach. Mirano's kitchen fittings range includes corner pull-outs and magic-corner mechanisms, and this guide covers how they work, which corner solution suits which layout, and what to confirm with the supplier before ordering.
The Basics
What Is a Magic Corner Unit?
A corner base cabinet in an L-shaped kitchen has a door opening on one side and a blind side that runs behind the neighbouring cabinet. With a fixed shelf, the items you put in the back are the ones you cannot reach.
A magic corner solves this with two sets of baskets. The front set is linked to the door and swings clear of the opening. The rear set rides on a runner and slides forward into the space the front set has left. Both layers are then at the opening, and both return when you close the door.
The same idea is sold under different names, including magic corner, corner pull-out and swing-out corner. If a drawing or BOQ calls it by one of these names, check the mechanism rather than the label.
Corner Options
Magic Corner vs Other Corner Solutions
A magic corner is one of four ways to fit out a corner base cabinet. The right one depends on the door opening, the cabinet size and what will be stored.
Comparison
Corner Solutions Compared
Like for like, based on how each system moves.
| Solution | How it works | Best for | Watch for |
|---|---|---|---|
| Magic corner | Front baskets swing out, rear baskets slide forward | Blind corner with a narrower door opening | Needs a handed unit and a planned door opening |
| Blind corner pull-out | The whole unit slides out in a straight line | Corners where the door opens wide and the cabinet is deep | The pull-out has to clear the neighbouring cabinet front |
| Revolving carousel | Round or kidney-shaped shelves rotate on a post | Corners with a wide door where round shelves use the space well | Round shelves waste the square corners |
| Fixed shelf | No mechanism | Rarely used corners and low budgets | The back of the corner is hard to reach |
General guide to how these systems work. Confirm sizes and load ratings for the specific model before you specify it.
Choosing
How to Choose a Corner Pull-Out
Settle these four points on the drawing first. They decide which systems are even possible.
02
Left or right hand
Magic corner units are handed. The hand follows the corner layout and where the door is hinged, so mark it on the drawing.
03
What will be stored
Heavy cookware needs a higher rated load and should sit in the lowest baskets. Light dry goods can go in the upper ones. Match the load rating of the system to the heaviest items.
04
Basket type and finish
Glass baskets are solid and heavier. Wire baskets are lighter and let air through. Check the finish, the rim height and whether the base is solid or open.
Specification
What to Confirm Before Ordering
Send this list to the supplier with your drawing.
| Item | Why it matters | Ask for |
|---|---|---|
| Cabinet internal width and depth | Decides whether the unit fits the carcass | Dimensioned drawing and the minimum cabinet size |
| Door opening width | The baskets have to clear the opening | Required door opening |
| Left or right hand | The unit is handed | Hand options for your layout |
| Rated load | Sets what can be stored safely | Load per basket and per set |
| Soft-close and door fittings | Affects daily use and installation | Whether the door fittings are included |
| Finish and basket material | Matches the kitchen and the use | Available finishes and basket options |
Avoid These
Common Corner Cabinet Mistakes
Most corner problems start on the drawing.
01
Ordering the unit after the carcass is made
The unit sets the cabinet size and the door opening. Choose it first, then build the cabinet around it.
02
Wrong hand
A left-opening unit will not fit a right-opening corner. Check the hand against the layout.
03
Storing heavy items in the top baskets
The upper baskets carry less safely and are harder to lift from. Heavy cookware belongs in the lowest set.
04
Specifying by name only
Magic corner, corner pull-out and swing-out can mean different mechanisms. Ask for the drawing.
Mirano Range
Corner Pull-Outs from Mirano
Mirano's kitchen fittings range lists corner pull-outs and magic-corner mechanisms next to its pull-out systems, which also include larder, swing-out pantry and base pull-out units. Models, sizes, hand options and finishes for corner units are shared on request, so send your cabinet width, hand and quantity through the quote form.
For the rest of the kitchen, see drawer systems, waste bins and modular kitchen accessories.
FAQs
Frequently Asked Questions
A magic corner is a pull-out storage system for a blind corner base cabinet. When you open the door, the front baskets swing out and the rear baskets slide forward, so items stored at the back of the corner come to the opening instead of staying out of reach.
The door is linked to the front baskets, which swing out of the opening as the door opens. The rear baskets sit on a runner and slide forward at the same time. Together they present both layers of storage at the opening, then glide back and close when you push the door shut.
A magic corner uses swinging and sliding baskets in a square or L-shaped blind corner. A carousel has round or kidney-shaped shelves that rotate on a central post. Carousels suit corners where the door opens wide, while a magic corner suits a narrower door opening, so the choice depends on the cabinet layout.
Magic corner units are made for specific cabinet widths and door openings, so the cabinet has to be planned around the unit. Many magic corner units sold in India are sized for a corner base cabinet of about 900 mm, but sizes differ by manufacturer. Confirm the internal width, depth and door opening against the datasheet before the carcass is cut.
In a blind corner it usually is, because a fixed shelf wastes most of that cabinet. The unit costs more than a shelf and needs correct cabinet planning. For a corner that will store heavy pots and appliances, the extra access is the main benefit. For a rarely used corner, a simpler solution can be enough.
Yes, units are handed. Left-opening and right-opening versions are made for the two corner layouts, and the wrong hand will not fit the opening. Decide the side from the kitchen layout before you order.
Load rating depends on the model and the basket material, so there is no single figure. Check the rated load per basket and per set, and plan heavy items such as pressure cookers and cast-iron cookware for the lowest baskets.
Sometimes. The corner cabinet needs the right internal width, depth and door opening, and the existing door and hinges have to work with the unit. In most cases it is easier to plan it at the design stage than to retrofit it.
Glass baskets give a solid base and a premium look but add weight. Wire baskets are lighter and let air and light through. For daily cooking items, check the basket finish and whether the base is solid or open before choosing.
Check the cabinet internal width and depth, the door opening width, left or right hand, the rated load, the soft-close mechanism, the finish, and whether the unit includes the door fittings. Ask for the datasheet and a dimensioned drawing.
Mirano's kitchen fittings range lists corner pull-outs and magic-corner mechanisms alongside its pull-out systems. Model names, sizes and finishes are shared through the quote form, so send your cabinet width, hand and quantity to get the current options.
Yes. Mirano supplies modular kitchen OEMs, interior designers, architects and dealers across India. Use the quote form for project quantities, samples and lead times.
