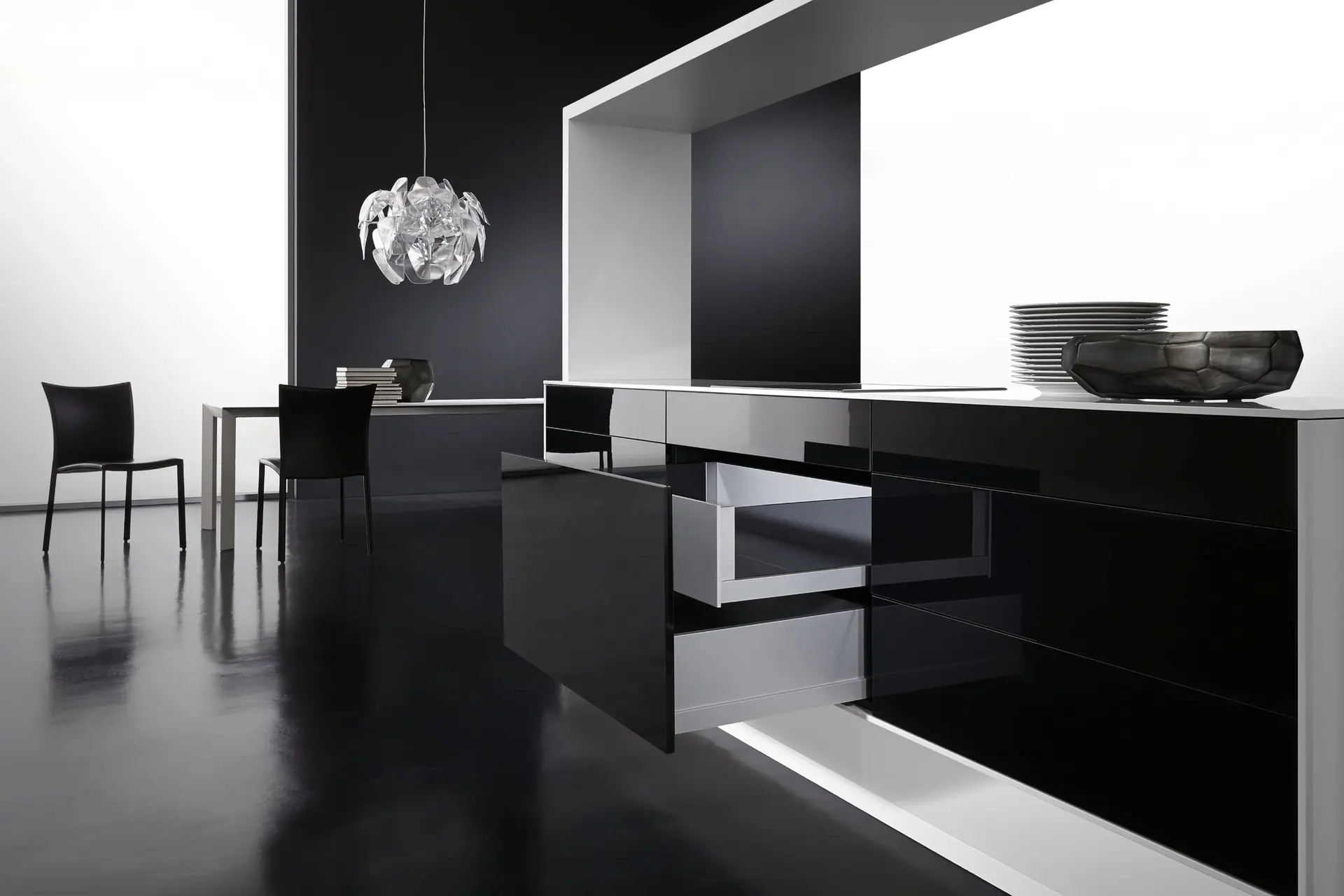

Tandem Box & Soft-Close Drawer Systems for Modular Kitchens
Standard, inset and Crystal Plus glass-sided kitchen drawers in H90, H122 and H186 heights, on Grass Dynapro concealed slides from Austria — supplied by Mirano by Varun Impex to kitchen manufacturers, dealers and designers across India.
- 9 drawer configurations
- Grass Dynapro slides (Austria)
- Soft-close, full extension
- Standard & inset (handleless)
- Dealer & OEM supply, PAN-India
What Is a Tandem Box Drawer System?
A tandem box is a complete metal-sided kitchen drawer: the side panels, back and base slide out on a concealed full-extension runner under the drawer. Unlike a bare drawer channel, which is only the pair of slides, a tandem box drawer system gives the carpenter the box, the slide and the front-fixing in one specified package. That is why it has become the standard drawer for modular kitchens. For the full comparison, read Tandem Box vs Telescopic Channel.
Mirano by Varun Impex supplies eight drawer families across nine configurations: standard drawers in H90, H122 and H186 heights (with and without a rectangular railing), the glass-sided Crystal Plus H186, and the matching inset range for handleless kitchens. Every drawer runs on the Grass Dynapro concealed slide; the Grass profile is on our Brands page. Drawers sit within the wider Mirano kitchen fittings range, alongside pull out systems, waste bins and drawer internal accessories.
Each drawer below lists its side height, fit, slide, adjustment and load information, so a designer or carpenter can specify against the cabinet drawing. Price depends on length, quantity and finish, so please request a quote for the drawer you need.
Our Kitchen Drawer Range
Eight drawer families, each with its own specification table. "Standard" drawers overlay the cabinet frame; "Inset" drawers sit flush inside it.

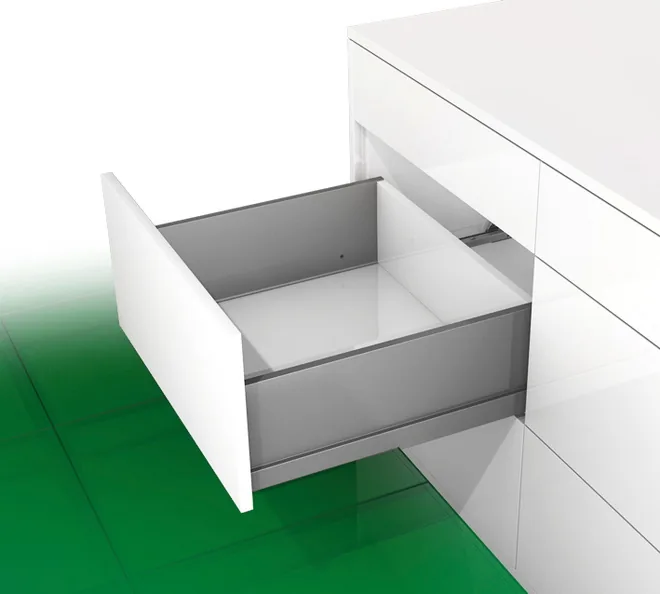

Drawer H90 & H122 — Standard Soft-Close Kitchen Drawer
The H90 and H122 drawers are the foundation of the range: a metal-sided box drawer on a concealed Dynapro slide that opens fully and closes softly. H90 is the shallow height for top rows and cutlery, H122 is the everyday height for utensils and packaged goods in base cabinets.
Key features
- Two side-panel heights: 90 mm (H90) and 122 mm (H122)
- Concealed Dynapro slide with full extension, so the whole drawer is reachable
- Integrated soft-close damping for a silent, controlled stop
- Standard overlay fit behind the cabinet front
- Suits cutlery, spices, utensils and everyday base-cabinet storage
Technical specifications
| Specification | Detail |
|---|---|
| Drawer height (side panel) | H90 (90 mm) and H122 (122 mm) |
| Fit | Standard overlay |
| Slide | Grass Dynapro concealed slide, three-part full extension, with soft-close |
| Soft-close | Integrated damping as standard |
| Front adjustment | Height, side, tilt and depth, adjusted without tools (Dynapro) |
| Load capacity | Dynapro slide rated for up to 70 kg; confirm the rated load for your drawer length and configuration |
| Nominal lengths | Grass range from 270 to 650 mm; confirm stocked lengths when quoting |
| Side style | Solid metal side panel |
| Finish | Grey metal side panels as shown; confirm available colours with our team |
| Slide origin | Grass, Austria (Dynapro is made in Austria) |

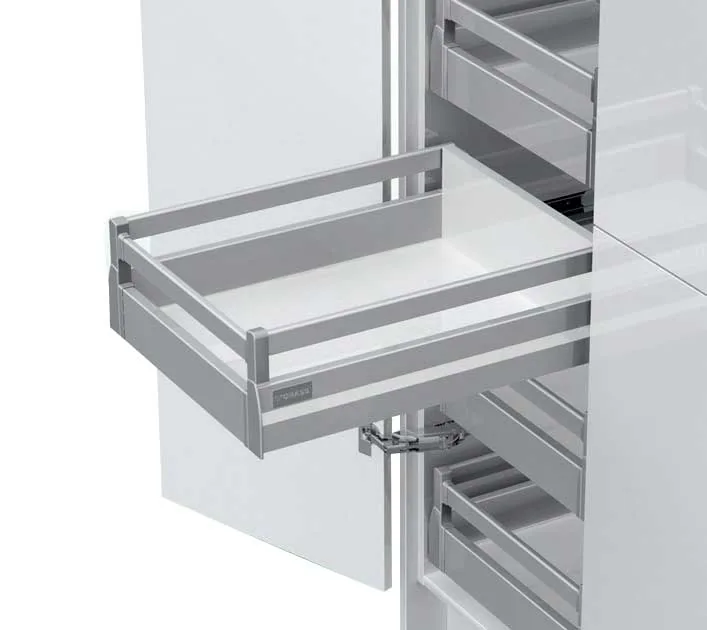

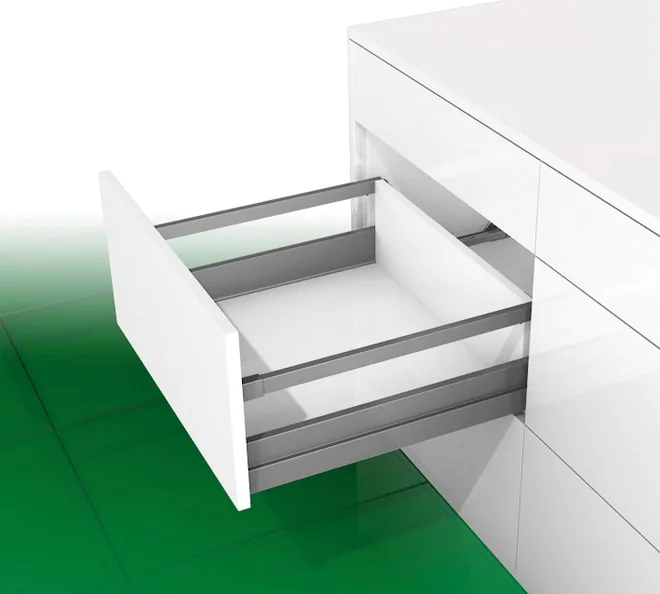

Drawer H90 with Rectangular Railing — Open-Sided Organiser Drawer
This H90 drawer adds a rectangular railing above the side panel. The railing frames the drawer, gives the sides extra rigidity and a defined edge, and suits wire baskets and organiser inserts that sit on or between the rails.
Key features
- H90 (90 mm) side panel with a rectangular railing frame
- Railing adds internal rigidity and a clear, defined drawer edge
- Designed for wire baskets and organiser inserts
- Concealed Dynapro slide with full extension and soft-close
- Standard overlay fit
Technical specifications
| Specification | Detail |
|---|---|
| Drawer height (side panel) | H90 (90 mm) |
| Fit | Standard overlay |
| Side style | Metal side panel with rectangular railing |
| Slide | Grass Dynapro concealed slide, three-part full extension, with soft-close |
| Soft-close | Integrated damping as standard |
| Front adjustment | Height, side, tilt and depth, adjusted without tools (Dynapro) |
| Load capacity | Dynapro slide rated for up to 70 kg; confirm the rated load for your drawer length and configuration |
| Nominal lengths | Grass range from 270 to 650 mm; confirm stocked lengths when quoting |
| Finish | Grey metal side panels as shown; confirm available colours with our team |
| Slide origin | Grass, Austria (Dynapro is made in Austria) |

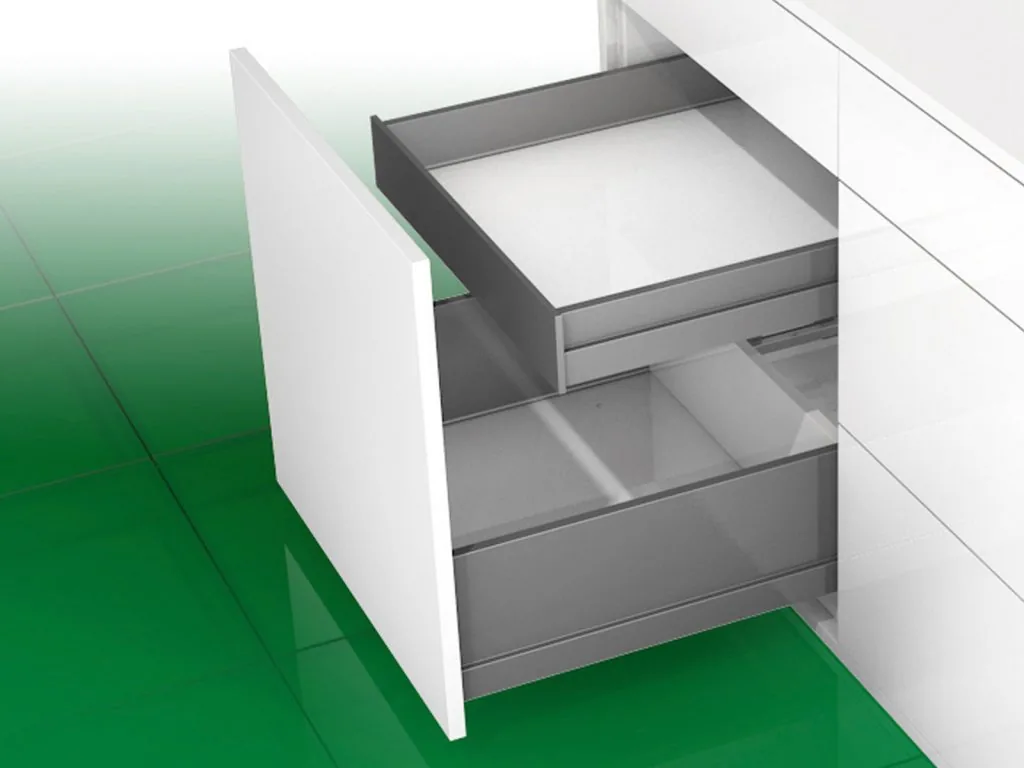

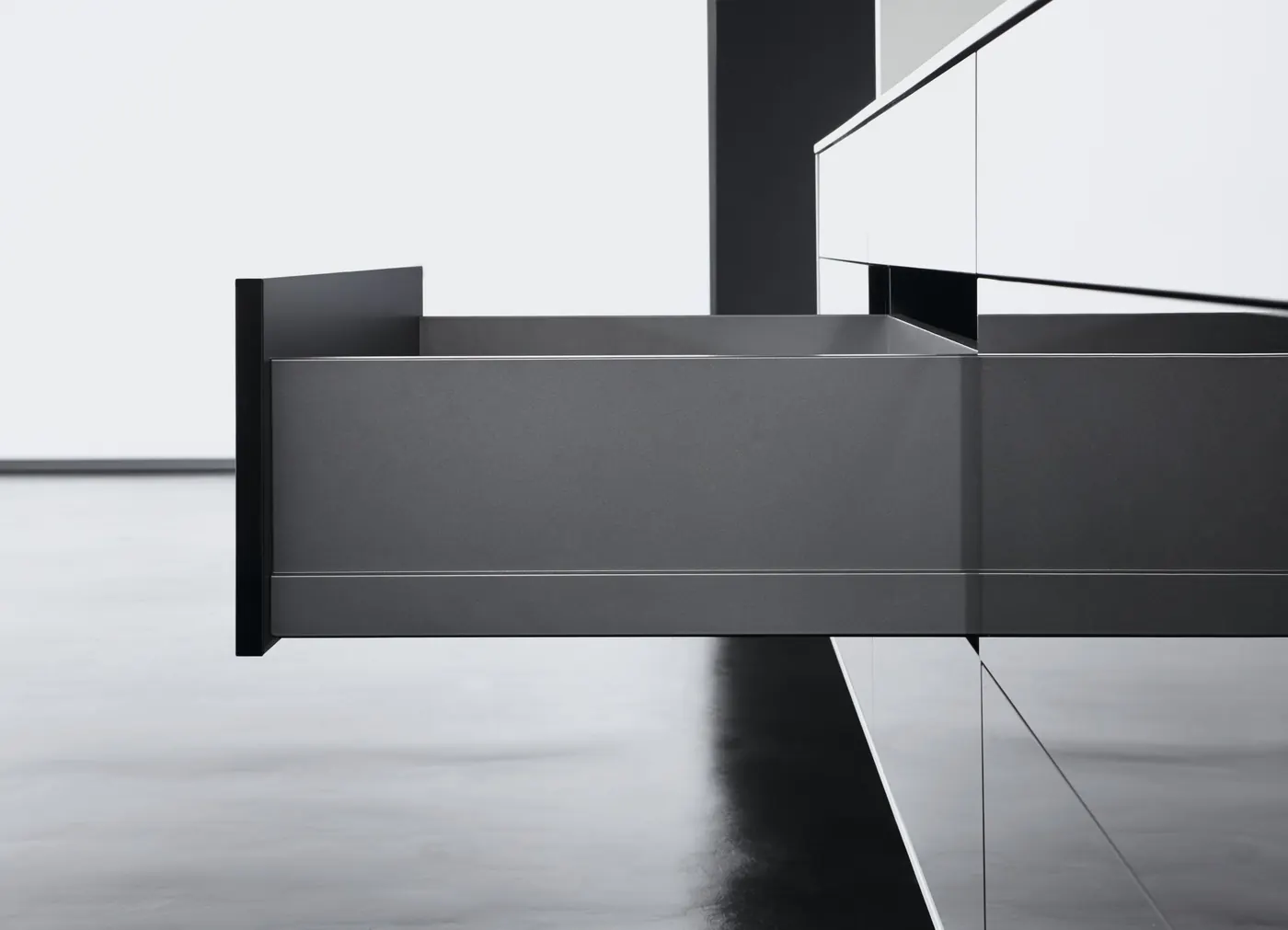

Drawer H186 — Tall Deep-Storage Kitchen Drawer
H186 is the tallest standard profile, built for the items that do not fit a shallow drawer: pots, pans, bulk pantry stock and appliances. The reinforced side panels carry deep storage while the concealed Dynapro slide keeps the drawer smooth under load.
Key features
- 186 mm side-panel height, the tallest standard profile in the range
- Reinforced side panels for deep storage
- Concealed Dynapro slide with full extension and soft-close
- Suits pots, pans, pantry items and bulk storage
- Standard overlay fit
Technical specifications
| Specification | Detail |
|---|---|
| Drawer height (side panel) | H186 (186 mm) |
| Fit | Standard overlay |
| Side style | Solid metal side panel, reinforced |
| Slide | Grass Dynapro concealed slide, three-part full extension, with soft-close |
| Soft-close | Integrated damping as standard |
| Front adjustment | Height, side, tilt and depth, adjusted without tools (Dynapro) |
| Load capacity | Dynapro slide rated for up to 70 kg; confirm the rated load for your drawer length and configuration |
| Nominal lengths | Grass range from 270 to 650 mm; confirm stocked lengths when quoting |
| Finish | Grey metal side panels as shown; confirm available colours with our team |
| Slide origin | Grass, Austria (Dynapro is made in Austria) |

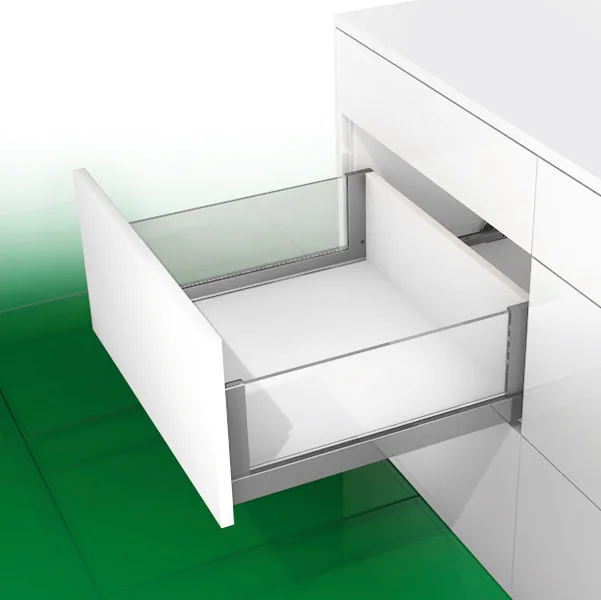

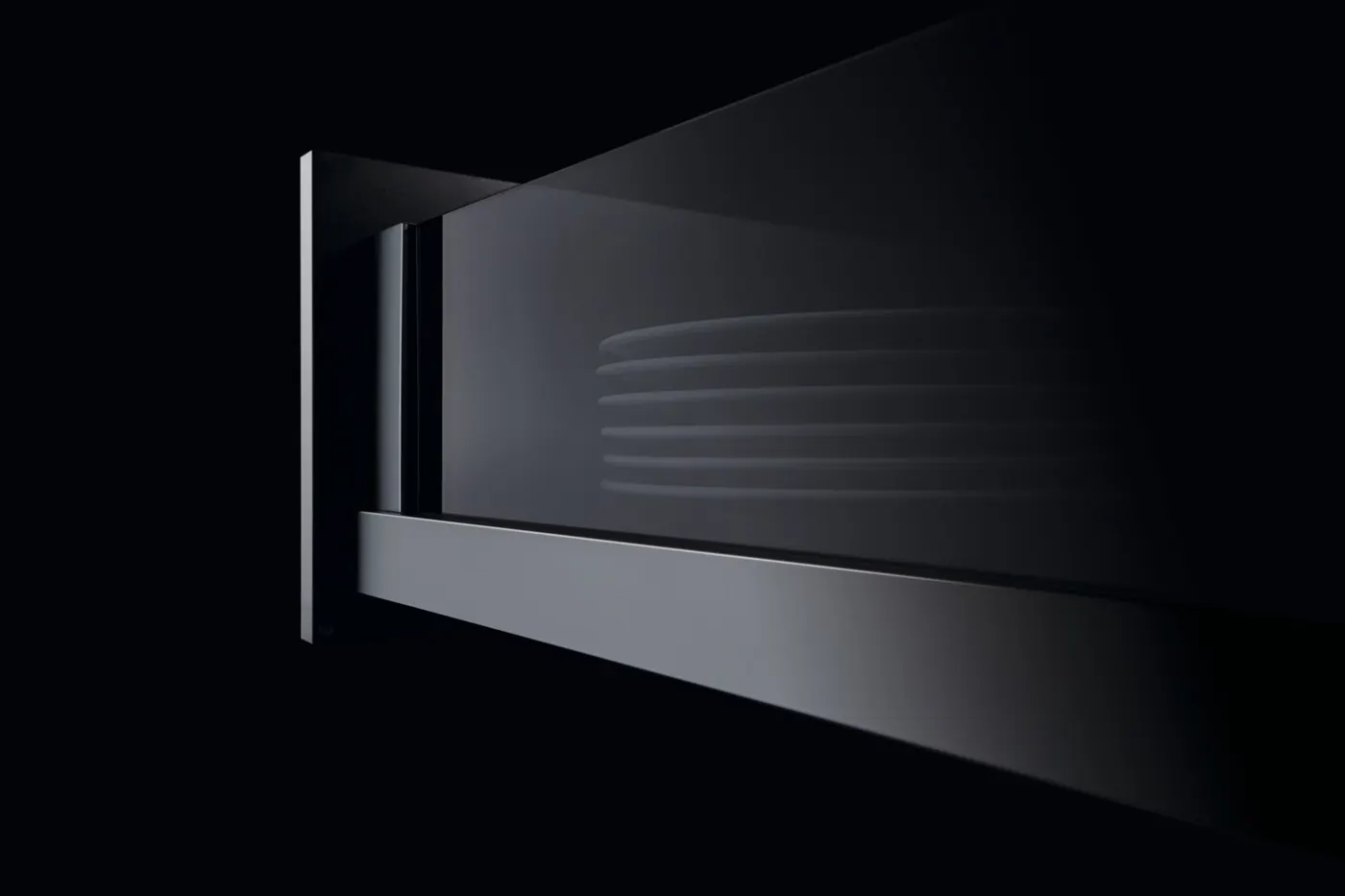

Crystal Plus H186 — Glass-Sided Kitchen Drawer
Crystal Plus combines the H186 height with a tempered-glass side panel. The contents of the drawer stay visible from the side, which makes it a design feature in pantry units and kitchen islands, while the Dynapro slide keeps the movement soft and fully extending.
Key features
- 186 mm height with a tempered-glass side panel
- Contents visible from the side for a showcase look
- Concealed Dynapro slide with full extension and soft-close
- Suits showcase pantry drawers and design-forward islands
- Standard overlay fit
Technical specifications
| Specification | Detail |
|---|---|
| Drawer height (side panel) | H186 (186 mm) |
| Fit | Standard overlay |
| Side style | Tempered-glass side panel |
| Slide | Grass Dynapro concealed slide, three-part full extension, with soft-close |
| Soft-close | Integrated damping as standard |
| Front adjustment | Height, side, tilt and depth, adjusted without tools (Dynapro) |
| Load capacity | Dynapro slide rated for up to 70 kg; confirm the rated load for your drawer length and configuration |
| Nominal lengths | Grass range from 270 to 650 mm; confirm stocked lengths when quoting |
| Finish | Metal frame with glass sides as shown; confirm available colours with our team |
| Slide origin | Grass, Austria (Dynapro is made in Austria) |

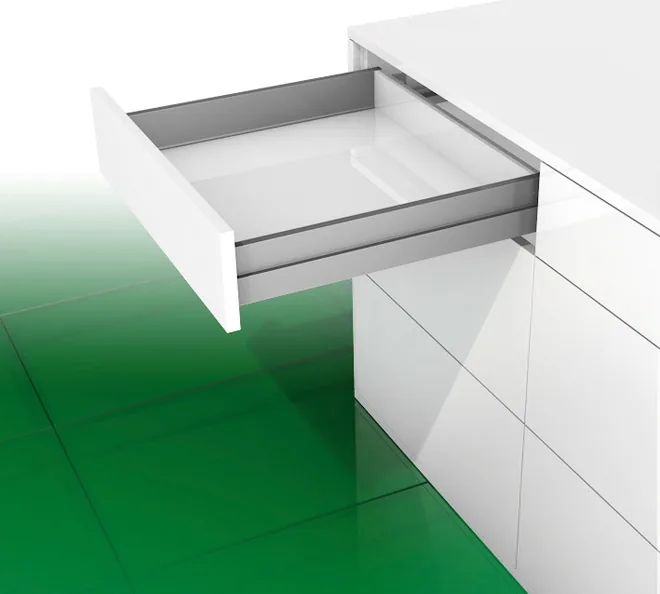

Inset Drawer H90 — Flush-Fit Drawer for Handleless Kitchens
The inset H90 drawer sits flush within the cabinet frame instead of overlaying it, which gives a seamless, gap-free finish. It is the shallow, top-row drawer for handleless and true-linear kitchens where reveal gaps and sightlines matter.
Key features
- H90 (90 mm) side height in a flush-inset format
- Seamless, gap-free elevation for handleless designs
- Concealed Dynapro slide with full extension and soft-close
- Tipmatic Soft-close version available for handle-free fronts (Dynapro)
- Suits flush, handleless top-row drawers
Technical specifications
| Specification | Detail |
|---|---|
| Drawer height (side panel) | H90 (90 mm) |
| Fit | Flush inset within the cabinet frame |
| Slide | Grass Dynapro concealed slide, three-part full extension, with soft-close |
| Soft-close | Integrated damping as standard |
| Handleless option | Tipmatic Soft-close Dynapro version for handle-free fronts |
| Front adjustment | Height, side, tilt and depth, adjusted without tools (Dynapro) |
| Load capacity | Dynapro slide rated for up to 70 kg; confirm the rated load for your drawer length and configuration |
| Nominal lengths | Grass range from 270 to 650 mm; confirm stocked lengths when quoting |
| Finish | Grey metal side panels as shown; confirm available colours with our team |
| Slide origin | Grass, Austria (Dynapro is made in Austria) |

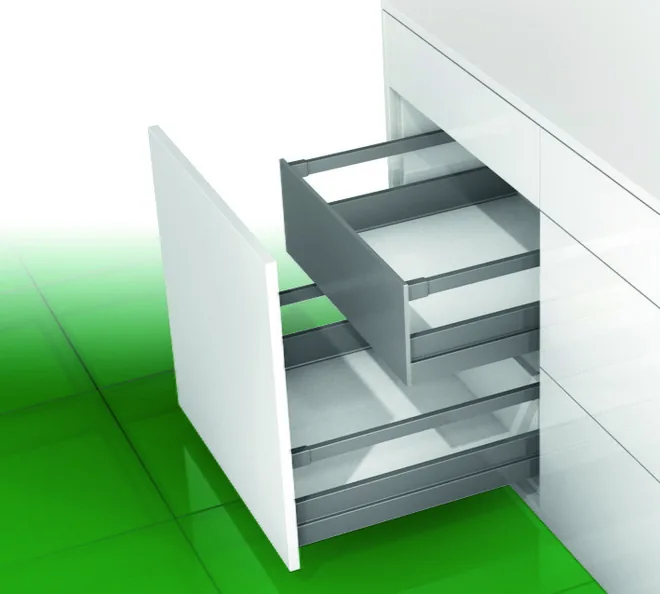

Inset Drawer H90 with Rectangular Railing — Flush Organiser Drawer
This is the inset H90 drawer with a rectangular railing frame. It keeps the flush, handleless front while adding the railing that stiffens the sides and supports organiser inserts and wire baskets.
Key features
- H90 (90 mm) inset drawer with a rectangular railing
- Flush-inset front for handleless kitchens
- Railing adds internal rigidity and supports organiser inserts
- Concealed Dynapro slide with full extension and soft-close
- Tipmatic Soft-close version available for handle-free fronts (Dynapro)
Technical specifications
| Specification | Detail |
|---|---|
| Drawer height (side panel) | H90 (90 mm) |
| Fit | Flush inset within the cabinet frame |
| Side style | Metal side panel with rectangular railing |
| Slide | Grass Dynapro concealed slide, three-part full extension, with soft-close |
| Soft-close | Integrated damping as standard |
| Handleless option | Tipmatic Soft-close Dynapro version for handle-free fronts |
| Front adjustment | Height, side, tilt and depth, adjusted without tools (Dynapro) |
| Load capacity | Dynapro slide rated for up to 70 kg; confirm the rated load for your drawer length and configuration |
| Nominal lengths | Grass range from 270 to 650 mm; confirm stocked lengths when quoting |
| Finish | Grey metal side panels as shown; confirm available colours with our team |
| Slide origin | Grass, Austria (Dynapro is made in Austria) |

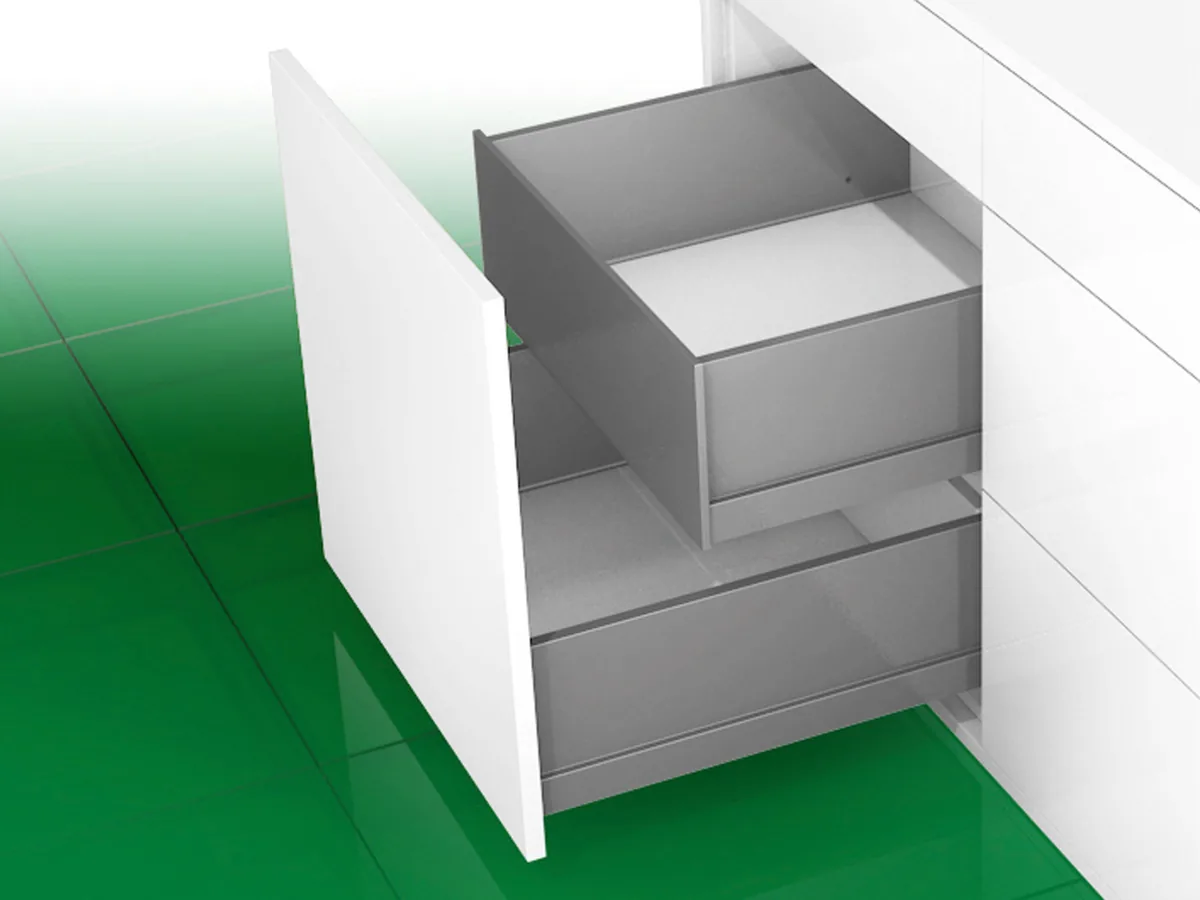

Inset Drawer H186 — Tall Flush Drawer for Pantry and Tall Cabinets
The inset H186 is the tall drawer for flush-mounted pantry and tall-cabinet storage. It gives handleless kitchens the capacity of the H186 profile without breaking the clean sightlines of the elevation.
Key features
- 186 mm side-panel height in a flush-inset format
- Tall storage for pantry and tall cabinets, with clean sightlines
- Concealed Dynapro slide with full extension and soft-close
- Tipmatic Soft-close version available for handle-free fronts (Dynapro)
- Suits pots, pans and bulk storage behind a flush front
Technical specifications
| Specification | Detail |
|---|---|
| Drawer height (side panel) | H186 (186 mm) |
| Fit | Flush inset within the cabinet frame |
| Side style | Solid metal side panel, reinforced |
| Slide | Grass Dynapro concealed slide, three-part full extension, with soft-close |
| Soft-close | Integrated damping as standard |
| Handleless option | Tipmatic Soft-close Dynapro version for handle-free fronts |
| Front adjustment | Height, side, tilt and depth, adjusted without tools (Dynapro) |
| Load capacity | Dynapro slide rated for up to 70 kg; confirm the rated load for your drawer length and configuration |
| Nominal lengths | Grass range from 270 to 650 mm; confirm stocked lengths when quoting |
| Finish | Grey metal side panels as shown; confirm available colours with our team |
| Slide origin | Grass, Austria (Dynapro is made in Austria) |
Inset Drawer Crystal Plus H186 — Flagship Flush Glass-Sided Drawer
The flagship of the range: a tall H186 inset drawer with a glass side panel, flush in the cabinet and soft-closing on a Dynapro slide. It is specified for luxury kitchens and pantries where the drawer interior is on show and the front stays handleless.
Key features
- 186 mm height, flush-inset format, with a glass side panel
- Flagship specification for luxury kitchens and pantries
- Concealed Dynapro slide with full extension and soft-close
- Tipmatic Soft-close version available for handle-free fronts (Dynapro)
- Interior visible from the side with a seamless front
Technical specifications
| Specification | Detail |
|---|---|
| Drawer height (side panel) | H186 (186 mm) |
| Fit | Flush inset within the cabinet frame |
| Side style | Glass side panel |
| Slide | Grass Dynapro concealed slide, three-part full extension, with soft-close |
| Soft-close | Integrated damping as standard |
| Handleless option | Tipmatic Soft-close Dynapro version for handle-free fronts |
| Front adjustment | Height, side, tilt and depth, adjusted without tools (Dynapro) |
| Load capacity | Dynapro slide rated for up to 70 kg; confirm the rated load for your drawer length and configuration |
| Nominal lengths | Grass range from 270 to 650 mm; confirm stocked lengths when quoting |
| Finish | Metal frame with glass sides as shown; confirm available colours with our team |
| Slide origin | Grass, Austria (Dynapro is made in Austria) |
Grass Dynapro Concealed Slides — the Runner Behind Every Drawer
Every drawer in the Mirano range moves on the Grass Dynapro slide. Grass describes Dynapro as a concealed system whose slide rails are mechanically synchronised, so drawers move without intrusive noise or resistance, even under high loads. It is made in Austria and received the Red Dot Award in 2010.
Dynapro features
- Fully concealed under-drawer slide, invisible when the drawer is open
- Three-part full extension, giving access to the entire drawer
- Mechanically synchronised slide rails for smooth, even travel
- Soft-close damping; Tipmatic Soft-close version for handle-free fronts
- Height, side, tilt and depth adjustment without tools
- Designed for loads of up to 70 kg; endurance-tested beyond 100,000 cycles at maximum load
Source for slide data: Grass product information for Dynapro. Rated load for a specific drawer depends on its length and configuration. Read more about Grass on our Brands page.
Compare Mirano Drawer Systems Side by Side
All eight families use the same Dynapro concealed slide with soft-close, so the choice is about height, fit and side style.
- Fit
- Standard overlay
- Side height
- 90 / 122 mm
- Side style
- Solid
- Best for
- Cutlery, spices, utensils
- Fit
- Standard overlay
- Side height
- 90 mm
- Side style
- Railing
- Best for
- Wire baskets, organiser inserts
- Fit
- Standard overlay
- Side height
- 186 mm
- Side style
- Solid, reinforced
- Best for
- Pots, pans, pantry storage
- Fit
- Standard overlay
- Side height
- 186 mm
- Side style
- Glass
- Best for
- Showcase pantry drawers, islands
- Fit
- Flush inset
- Side height
- 90 mm
- Side style
- Solid
- Best for
- Handleless top-row drawers
- Fit
- Flush inset
- Side height
- 90 mm
- Side style
- Railing
- Best for
- Handleless kitchens with organisers
- Fit
- Flush inset
- Side height
- 186 mm
- Side style
- Solid, reinforced
- Best for
- Flush pantry and tall cabinets
- Fit
- Flush inset
- Side height
- 186 mm
- Side style
- Glass
- Best for
- Luxury handleless pantries
How to Choose the Right Kitchen Drawer System
Four decisions settle most drawer specifications. Make them against the cabinet drawing before the BOQ is signed.
1. What height does the drawer need?
H90 suits cutlery, spices and shallow items in the top row. H122 suits utensils and packaged goods in mid-height base drawers. H186 suits pots, pans and bulk pantry stock in base pantry units and tall pull-outs. The number is the side-panel height in millimetres. See the kitchen drawer height guide for worked examples.
2. Overlay or inset?
Standard drawers overlay the cabinet frame and suit most modular layouts. Inset drawers sit flush within the frame for a handleless, true-linear elevation where reveal gaps and sightlines matter. The inset range mirrors the standard range in height.
3. Solid, railing or glass sides?
Solid sides are the everyday choice. A rectangular railing frames the drawer and suits wire baskets and organiser inserts. Crystal Plus adds a tempered-glass side for showcase pantry drawers and islands. Pair the drawer with cutlery trays and organisers from drawer internal accessories.
4. What load and length are needed?
The Dynapro slide is designed for loads of up to 70 kg, and the Grass range covers nominal lengths from 270 to 650 mm. Rated load depends on the drawer length and configuration, so send us the cabinet width, depth and expected load and we will confirm the drawer before you order.
Standard Drawer vs Inset Drawer
| Factor | Standard drawer | Inset drawer |
|---|---|---|
| Position of the front | Overlays the cabinet frame | Sits flush within the cabinet frame |
| Look | Classic or handleless, with front overlay | Seamless, gap-free, true-linear elevation |
| Handleless kitchens | Possible with push-to-open or profile handles | Purpose-built for handleless designs |
| Planning | Standard carcass and overlay clearances | Needs the reveal and clearance planned at the design stage |
| Heights in the Mirano range | H90, H122, H186, Crystal Plus H186 | H90, H90 with railing, H186, Crystal Plus H186 |
Drawer Systems in Use

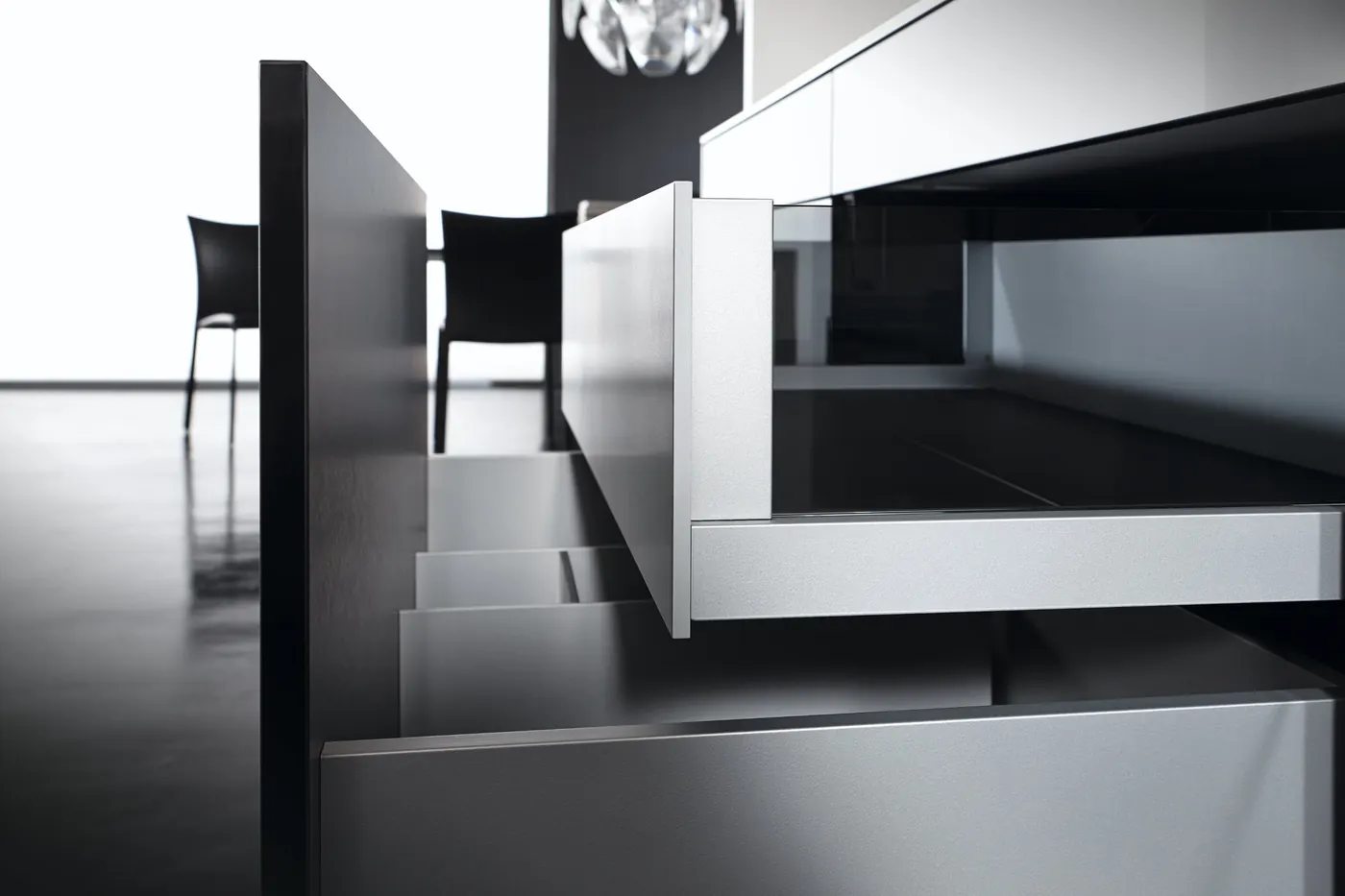

Slim sides, soft-close travel and flush fronts, as they look in a finished kitchen.
Why Specify Drawer Systems from Mirano
Austrian slide technology
Every drawer runs on the Grass Dynapro concealed slide, a made-in-Austria runner with full extension and soft-close.
A complete range
Eight drawer families and nine configurations cover every height, fit and side style a modular kitchen project needs.
Standard and inset
Overlay drawers for classic layouts and flush inset drawers for handleless, linear kitchens, from one supplier.
Specification support
Send the cabinet width, depth and expected load and our team will confirm the drawer, length and fit before you order.
Supplied to Kitchen Professionals Across India
Modular kitchen manufacturers
Bulk and OEM enquiries for drawer systems built into your cabinet range.
Dealers and distributors
A defined range with clear height and fit options, simple to stock and quote. See the dealer programme on our Dealers page.
Carpenters and fabricators
Clear height, fit and adjustment information so the carcass and fronts are set right the first time.
Interior designers and architects
Standard, inset and glass-sided options ready for the kitchen specification sheet.
Frequently Asked Questions
Further reading: Kitchen drawer height guide: H90, H122 and H186
Specify hardware that elevates every interior.
Talk to our specification team for samples, project quotes and dealer enquiries. We respond within one business day.
