What Is a Built-In Kitchen Dustbin System?
A built-in kitchen dustbin system is a bin mounted on a mechanism inside a modular kitchen cabinet or drawer. It pulls out, swings out with the door or rotates into reach, and goes back out of sight when the door is closed. The mechanism matters as much as the bin: it decides how much cabinet width the dustbin needs, whether wet and dry waste can be separated, and how the unit behaves after thousands of daily openings.
Mirano by Varun Impex supplies seven systems in four formats: pull-out bins (Movebin, Globe 2.0, Ecofil), an under-drawer bin system (Metropolis) and door-mounted bins (Swing, Swing Out, Ring). Globe 2.0 and Movebin are made by Vibo, Italy; the full brand list is on our Brands page. Waste bins sit within the wider Mirano kitchen fittings range, alongside pull out systems and drawer systems.
Below you will find the capacity, dimensions, cabinet fit and model codes for every system, so a kitchen designer or carpenter can specify the right one against the cabinet drawing.
Our Kitchen Waste Bin Range
Seven systems, each with its own specification table. Capacities are per bin; "total" is the combined volume of all bins in the unit.
Movebin — Three-Bin Under-Sink Pull-Out Waste & Utility System
Movebin is a pull-out dustbin unit for the sink cabinet that combines three-way waste segregation with a utility zone for cleaning bottles and paper rolls. Two 16.5-litre bins and one 10-litre bin cover wet, dry and recyclable streams, and the automatic lid opens as the drawer is pulled out, keeping odour and sight contained when it is closed.
Key features
- Three-bin segregation: 16.5 + 16.5 + 10 litres
- Automatic lid opens with the drawer, from 70° to 90°; the lid doubles as a practical shelf
- Polypropylene bins with hermetic-closure collars
- Organic-waste section with a washable activated-carbon odour filter (replace every 90 days)
- Rear utility zone for cleaning bottles and paper rolls; optional extra trays kit
Technical specifications
| Specification | Detail |
|---|---|
| Bin capacity | 16.5 + 16.5 + 10 litres (three bins) |
| Segregation | Three-way: wet, dry and recyclable |
| Lid | Automatic lid, opens with the drawer (70° to 90° opening) |
| Bins | Polypropylene, with collars for hermetic closure |
| Base | Electro-galvanised sheet metal, double epoxy-coated, with pre-spaced holes |
| Odour control | Organic-waste section with washable activated-carbon filter; replacement every 90 days (spare part code PCSFMB) |
| Utility zone | Rear zone for cleaning bottles and paper rolls; optional Fumé trays kit (code VAMVBSRK2, Smoky Grey) |
| Finishes | Epoxy-coated Nero Materico, Flat Black or Grigio Materico |
| Kit codes | MVB060A, MVB075A, MVB080A, MVB090A, MVB120A |
| Drawer compatibility | Suits all drawer sides currently on the market (drawer sides not included) |
| Cabinet type | Base cabinet (sink unit) |
| Manufacturer | Vibo, Italy |
Globe 2.0 — Pull-Out Waste Sorting System with Automatic Lid
Globe 2.0 is the refined version of the Globe platform: a pull-out waste sorting system with a new sheet-metal frame, soft-closing over-extension slides and a sheet-metal lid that lifts automatically as the unit is extracted. Bins have handles for easy removal and washing, and the unit is rated for 50 kg on the slides, which suits the daily load of a working kitchen.
Key features
- Automatic sheet-metal lid that opens simultaneously with the extraction
- Over-extension slides with soft-closing system, 50 kg maximum slide load
- Polypropylene bins with handles for easy extraction and cleaning
- Adjustable door-bracket kit included; suits cabinet sides from 16 to 19 mm
- Can be combined with an optional drawer (purchased separately)
Technical specifications
| Specification | Detail |
|---|---|
| Bin capacity | 33 + 33 litres (twin-bin configuration); other bin layouts by kit code |
| Max. load capacity | 50 kg (slides) |
| Lid | Sheet-metal automatic lid, opens simultaneously with the extraction |
| Runner | Over-extension slides with soft-closing system |
| Frame | New sheet-metal frame |
| Bins | Polypropylene, removable, with handles |
| Door fixing | Adjustable door-bracket kit included; cabinet sides 16–19 mm |
| Finishes | Epoxy-coated Nero Materico or Grigio Materico |
| Kit codes | PG2GME402A, PG2GME402XLA, PG2GME452A, PG2GME453A, PG2GME502A, PG2GME503A, PG2GME602A, PG2GME602XLA, PG2GME604A |
| Cabinet type | Base cabinet (sink unit) |
| Manufacturer | Vibo, Italy |
Looking for the earlier Globe 2 (33 + 33 litres, 50 kg, upper utility trays)? See it on the Pull Out Systems page.

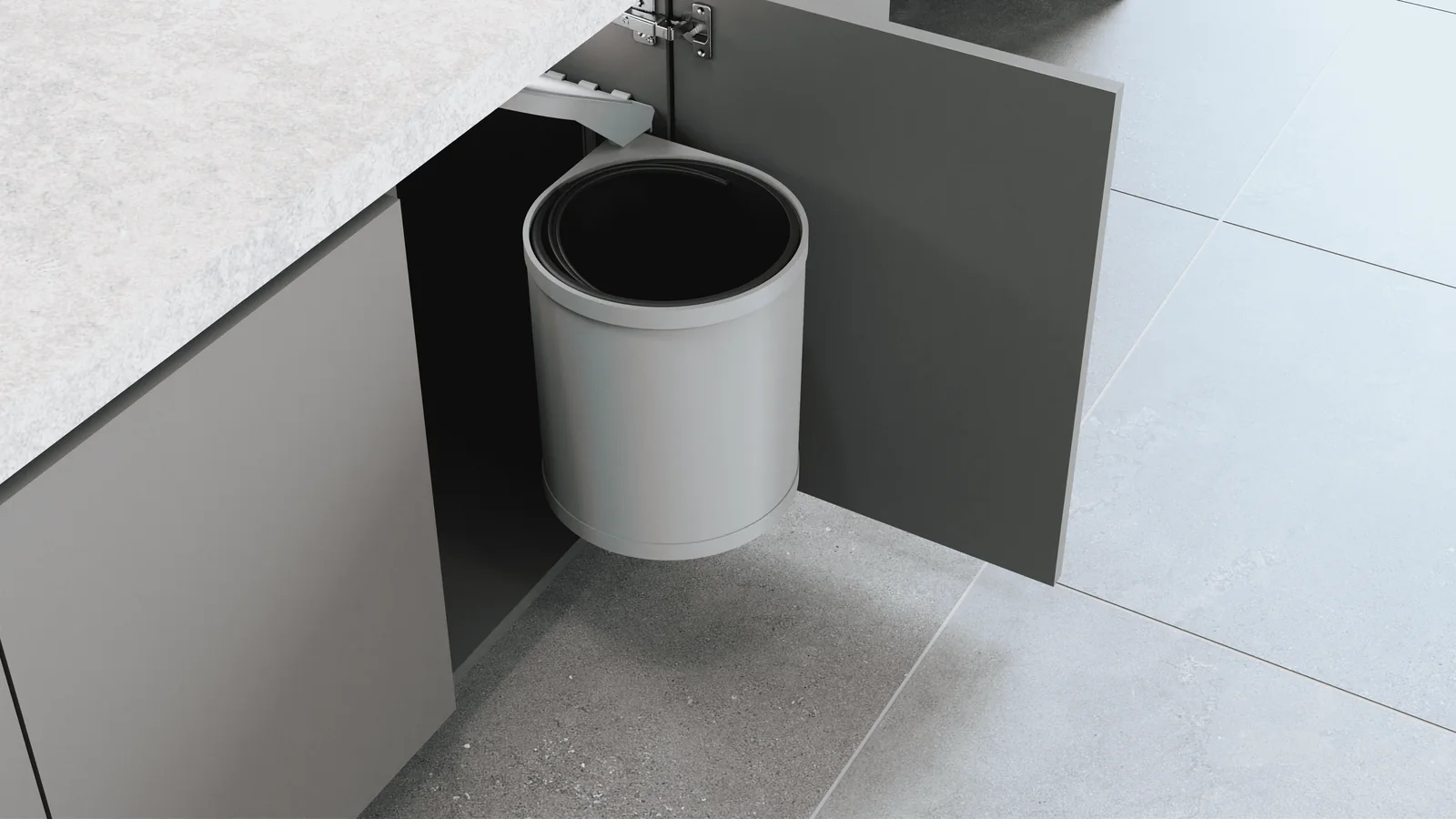

Ring Waste Bin — Compact Round Rotating Bin for Base Cabinets
Ring is a line of round waste bins fixed directly to the side of the cabinet, so the bin rotates out with the door instead of needing a slide. At 10 litres it is the most compact system in the range, which makes it a practical choice for narrow base cabinets and under-sink units in apartment kitchens.
Key features
- Round 10-litre bin fixed to the cabinet side, no pull-out runners needed
- Rotating action brings the bin out with the cabinet door
- Compact footprint: 320 mm high, 270 mm diameter
- Two models: PP602/1 and PPI607/1 (the latter for a 400 mm base cabinet)
Technical specifications
| Model | Capacity | Height × Depth × Width | Base cabinet (W × D) | Material |
|---|---|---|---|---|
| PP602/1 | 10 litres | 320 × 270 × 270 mm | — | Plastic |
| PPI607/1 | 10 litres | 320 × 270 × 270 mm | 400 × 500 mm | Plastic |
- Capacity
- 10 litres
- Height × Depth × Width
- 320 × 270 × 270 mm
- Base cabinet (W × D)
- —
- Material
- Plastic
- Capacity
- 10 litres
- Height × Depth × Width
- 320 × 270 × 270 mm
- Base cabinet (W × D)
- 400 × 500 mm
- Material
- Plastic
"—" means the base-cabinet size is not listed for that model. Confirm cabinet fit with our team before ordering.

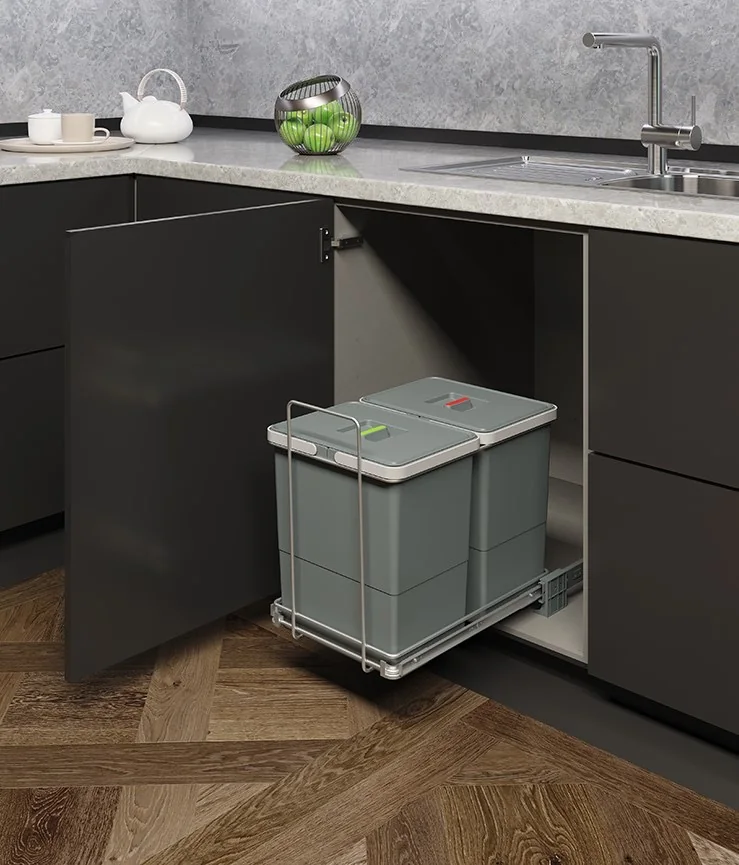

Ecofil — Built-In Pull-Out Waste Segregation Bins for Base Cabinets
Ecofil is a line of built-in waste bin systems made on a plated steel wire frame and extracted from the front on metal sliders. It is configured around standard bin sizes — single, twin, three-bin and four-bin layouts — so wet, dry and recyclable waste can be separated inside one pull-out, with a model for 300 mm and 400 mm base cabinets.
Key features
- Plated steel wire frame with front extraction on metal sliders
- Ten configurations from a single 18-litre bin to twin 24-litre bins (48 litres)
- Twin, three-bin and four-bin layouts for wet / dry / recyclable segregation
- Models for 300 mm and 400 mm wide base cabinets
Technical specifications
| Model | Bins (litres) | Total | Height × Depth × Width | Base cabinet (W × D) |
|---|---|---|---|---|
| PF01 34A1 | 18 + 8 | 26 L | 360 × 460 × 250 mm | 300 × 500 mm |
| PF01 34A2 | 12 × 2 | 24 L | 360 × 460 × 250 mm | — |
| PF01 34A3 | 8 × 3 | 24 L | 360 × 460 × 250 mm | 300 × 500 mm |
| PF01 34B1 | 18 + 8 + 8 | 34 L | 360 × 460 × 330 mm | — |
| PF01 34B2 | 18 × 2 | 36 L | 360 × 460 × 330 mm | 400 × 500 mm |
| PF01 34B3 | 8 × 4 | 32 L | 360 × 460 × 330 mm | 400 × 500 mm |
| PF01 34B4 | 12 × 3 | 36 L | 360 × 460 × 330 mm | 400 × 500 mm |
| PF01 34C1 | 18 (single) | 18 L | 360 × 330 × 250 mm | 300 × 450 mm |
| PF01 44B1 | 24 + 8 + 8 | 40 L | 460 × 460 × 320 mm | 400 × 500 mm |
| PF01 44B2 | 24 × 2 | 48 L | 460 × 460 × 320 mm | 400 × 500 mm |
- Bins (litres)
- 18 + 8
- Total
- 26 L
- Height × Depth × Width
- 360 × 460 × 250 mm
- Base cabinet (W × D)
- 300 × 500 mm
- Bins (litres)
- 12 × 2
- Total
- 24 L
- Height × Depth × Width
- 360 × 460 × 250 mm
- Base cabinet (W × D)
- —
- Bins (litres)
- 8 × 3
- Total
- 24 L
- Height × Depth × Width
- 360 × 460 × 250 mm
- Base cabinet (W × D)
- 300 × 500 mm
- Bins (litres)
- 18 + 8 + 8
- Total
- 34 L
- Height × Depth × Width
- 360 × 460 × 330 mm
- Base cabinet (W × D)
- —
- Bins (litres)
- 18 × 2
- Total
- 36 L
- Height × Depth × Width
- 360 × 460 × 330 mm
- Base cabinet (W × D)
- 400 × 500 mm
- Bins (litres)
- 8 × 4
- Total
- 32 L
- Height × Depth × Width
- 360 × 460 × 330 mm
- Base cabinet (W × D)
- 400 × 500 mm
- Bins (litres)
- 12 × 3
- Total
- 36 L
- Height × Depth × Width
- 360 × 460 × 330 mm
- Base cabinet (W × D)
- 400 × 500 mm
- Bins (litres)
- 18 (single)
- Total
- 18 L
- Height × Depth × Width
- 360 × 330 × 250 mm
- Base cabinet (W × D)
- 300 × 450 mm
- Bins (litres)
- 24 + 8 + 8
- Total
- 40 L
- Height × Depth × Width
- 460 × 460 × 320 mm
- Base cabinet (W × D)
- 400 × 500 mm
- Bins (litres)
- 24 × 2
- Total
- 48 L
- Height × Depth × Width
- 460 × 460 × 320 mm
- Base cabinet (W × D)
- 400 × 500 mm
"—" means the base-cabinet size is not listed for that model. Confirm cabinet fit with our team before ordering.

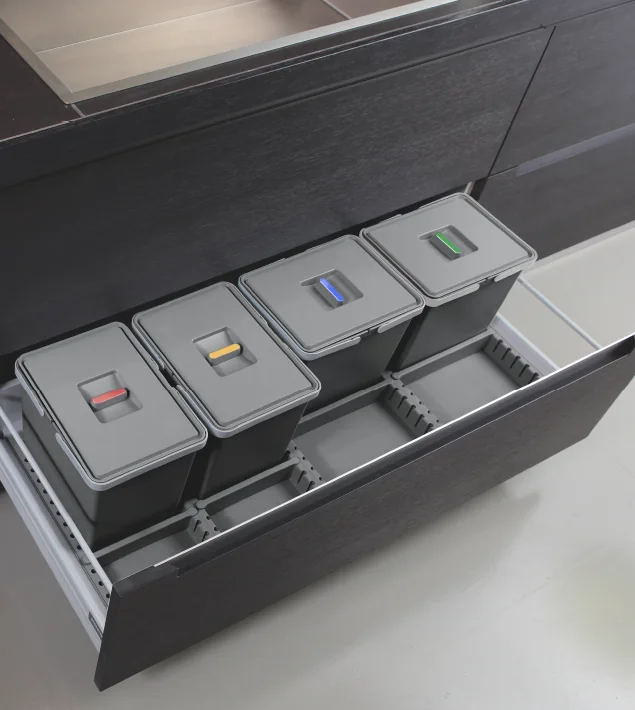

Metropolis — Modular Waste Bin System for Kitchen Drawers
Metropolis is a waste bin system designed to be inserted directly into kitchen drawers. It adapts to different internal drawer sizes, is fully modular and is easy to install, so a wide base drawer can carry two, three or four bins without a separate pull-out frame. Models cover drawer widths from 500 mm to 1,200 mm in two heights.
Key features
- Insert system for kitchen drawers; fits a range of internal drawer sizes
- Fully modular, with 2, 3 or 4 bins (and mixed 15 / 10 / 6-litre layouts)
- Two heights: 220 mm (PTC22 series) and 280 mm (PTC28 series)
- Bin sets from 20 litres up to 60 litres per drawer
Technical specifications
| Model | Bins (litres) | Total | Height × Depth × Width | Drawer / cabinet (W × D) |
|---|---|---|---|---|
| PTC22 06050 1F | 12 × 2 | 24 L | 220 × 460–490 × 510–530 mm | 600 × 500 mm |
| PTC22 07550 1F | 12 × 3 | 36 L | 220 × 460–490 × 650–670 mm | 750 × 500 mm |
| PTC22 08050 7F | 12 × 3 | 36 L | 220 × 460–490 × 710–730 mm | 800 × 500 mm |
| PTC22 09050 2F | 12 × 4 | 48 L | 220 × 460–490 × 810–830 mm | 900 × 500 mm |
| PTC22 10050 7F | 12 × 3 | 36 L | 220 × 460–490 × 910–930 mm | 1000 × 500 mm |
| PTC22 12050 1F | 12 × 4 | 48 L | 220 × 460–490 × 1110–1130 mm | 1200 × 500 mm |
| PTC28 05050 7F | 10 × 2 | 20 L | 280 × 460–490 × 410–430 mm | 500 × 500 mm |
| PTC28 06050 2F | 15 + 10 + 10 + 6 | 41 L | 280 × 460–490 × 510–530 mm | 600 × 500 mm |
| PTC28 06050 3F | 15 × 2 | 30 L | 280 × 460–490 × 510–530 mm | 600 × 500 mm |
| PTC28 06050 4F | 15 + 6 + 6 | 27 L | 280 × 460–490 × 510–530 mm | 600 × 500 mm |
| PTC28 08050 7F | 15 × 3 | 45 L | 280 × 460–490 × 710–730 mm | 800 × 500 mm |
| PTC28 09050 5F | 15 × 3 | 45 L | 280 × 460–490 × 810–830 mm | 900 × 500 mm |
| PTC28 09050 7F | 15 + 15 + 6 + 6 | 42 L | 280 × 460–490 × 810–830 mm | 900 × 500 mm |
| PTC28 09050 9F | 15 × 4 | 60 L | 280 × 460–490 × 810–830 mm | 900 × 500 mm |
| PTC28 10050 7F | 15 × 3 | 45 L | 280 × 460–490 × 910–930 mm | 1000 × 500 mm |
| PTC28 12050 4F | 15 × 4 | 60 L | 280 × 460–490 × 1110–1130 mm | 1200 × 500 mm |
- Bins (litres)
- 12 × 2
- Total
- 24 L
- Height × Depth × Width
- 220 × 460–490 × 510–530 mm
- Drawer / cabinet (W × D)
- 600 × 500 mm
- Bins (litres)
- 12 × 3
- Total
- 36 L
- Height × Depth × Width
- 220 × 460–490 × 650–670 mm
- Drawer / cabinet (W × D)
- 750 × 500 mm
- Bins (litres)
- 12 × 3
- Total
- 36 L
- Height × Depth × Width
- 220 × 460–490 × 710–730 mm
- Drawer / cabinet (W × D)
- 800 × 500 mm
- Bins (litres)
- 12 × 4
- Total
- 48 L
- Height × Depth × Width
- 220 × 460–490 × 810–830 mm
- Drawer / cabinet (W × D)
- 900 × 500 mm
- Bins (litres)
- 12 × 3
- Total
- 36 L
- Height × Depth × Width
- 220 × 460–490 × 910–930 mm
- Drawer / cabinet (W × D)
- 1000 × 500 mm
- Bins (litres)
- 12 × 4
- Total
- 48 L
- Height × Depth × Width
- 220 × 460–490 × 1110–1130 mm
- Drawer / cabinet (W × D)
- 1200 × 500 mm
- Bins (litres)
- 10 × 2
- Total
- 20 L
- Height × Depth × Width
- 280 × 460–490 × 410–430 mm
- Drawer / cabinet (W × D)
- 500 × 500 mm
- Bins (litres)
- 15 + 10 + 10 + 6
- Total
- 41 L
- Height × Depth × Width
- 280 × 460–490 × 510–530 mm
- Drawer / cabinet (W × D)
- 600 × 500 mm
- Bins (litres)
- 15 × 2
- Total
- 30 L
- Height × Depth × Width
- 280 × 460–490 × 510–530 mm
- Drawer / cabinet (W × D)
- 600 × 500 mm
- Bins (litres)
- 15 + 6 + 6
- Total
- 27 L
- Height × Depth × Width
- 280 × 460–490 × 510–530 mm
- Drawer / cabinet (W × D)
- 600 × 500 mm
- Bins (litres)
- 15 × 3
- Total
- 45 L
- Height × Depth × Width
- 280 × 460–490 × 710–730 mm
- Drawer / cabinet (W × D)
- 800 × 500 mm
- Bins (litres)
- 15 × 3
- Total
- 45 L
- Height × Depth × Width
- 280 × 460–490 × 810–830 mm
- Drawer / cabinet (W × D)
- 900 × 500 mm
- Bins (litres)
- 15 + 15 + 6 + 6
- Total
- 42 L
- Height × Depth × Width
- 280 × 460–490 × 810–830 mm
- Drawer / cabinet (W × D)
- 900 × 500 mm
- Bins (litres)
- 15 × 4
- Total
- 60 L
- Height × Depth × Width
- 280 × 460–490 × 810–830 mm
- Drawer / cabinet (W × D)
- 900 × 500 mm
- Bins (litres)
- 15 × 3
- Total
- 45 L
- Height × Depth × Width
- 280 × 460–490 × 910–930 mm
- Drawer / cabinet (W × D)
- 1000 × 500 mm
- Bins (litres)
- 15 × 4
- Total
- 60 L
- Height × Depth × Width
- 280 × 460–490 × 1110–1130 mm
- Drawer / cabinet (W × D)
- 1200 × 500 mm
Drawer / cabinet size follows the model code (for example, 09050 = 900 × 500 mm). Confirm the internal drawer size with our team before ordering.

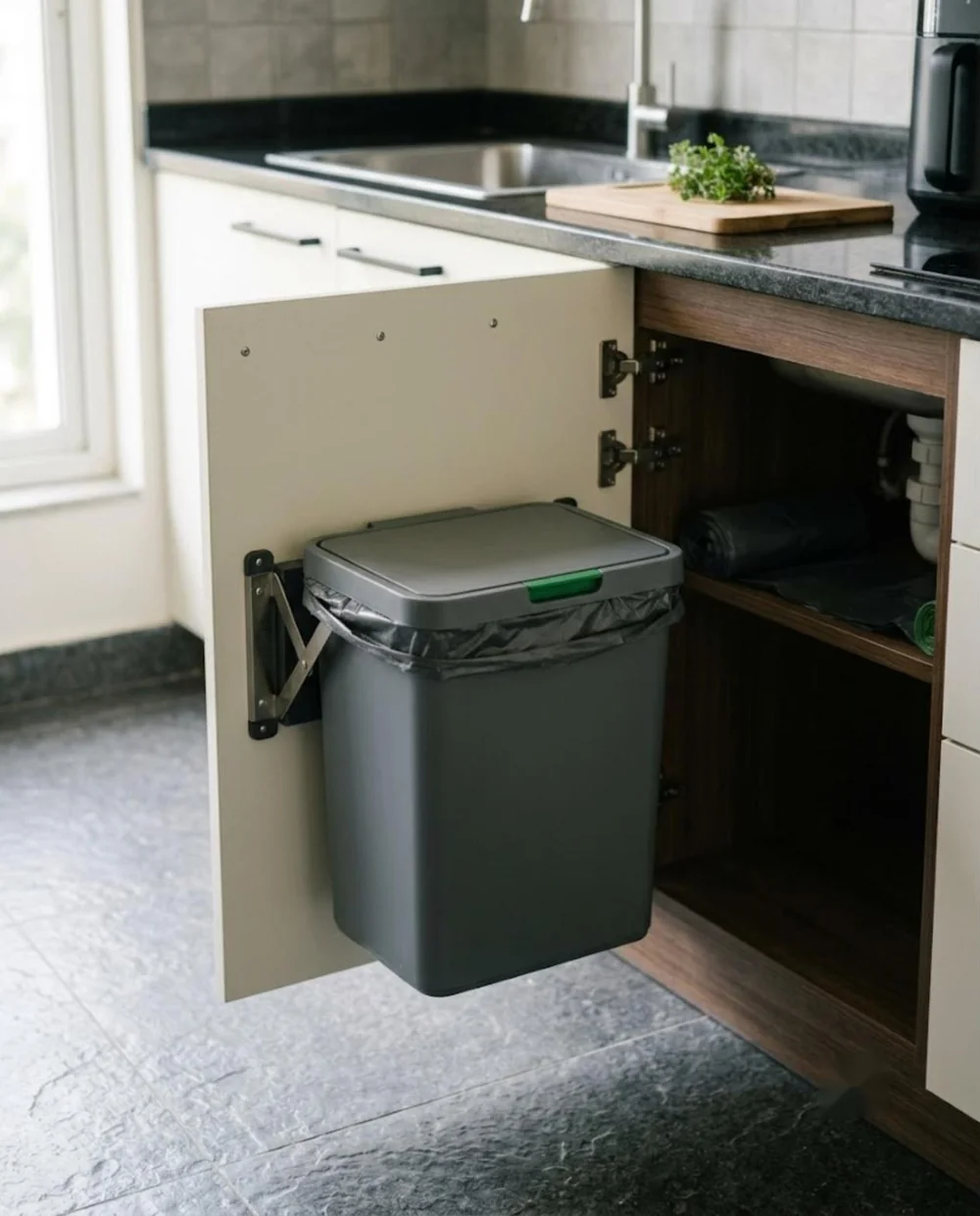

Swing Out — Large-Capacity Bin Fixed Inside the Cabinet Door
Swing Out is a large-capacity waste bin line where a fibreglass-reinforced nylon support is fixed directly inside the cabinet door and the bin hangs from it. It is a simple, economical way to add a 12- or 24-litre bin to a base cabinet where a pull-out frame is not practical, and it opens and closes with the door.
Key features
- Fibreglass-reinforced nylon support fixed directly inside the door
- Bin swings out with the door, no slides or drawer box required
- 24-litre and 12-litre bin options
- Designed for a 450 mm wide, 500 mm deep base cabinet (24-litre model)
Technical specifications
| Model | Capacity | Height × Depth × Width | Base cabinet (W × D) | Material |
|---|---|---|---|---|
| PBD SP SG44 | 24 litres | 440 × 300 × 230 mm | 450 × 500 mm | Plastic |
| PBD SP SS34 | 12 litres | 340 × 300 × 150 mm | — | Plastic |
- Capacity
- 24 litres
- Height × Depth × Width
- 440 × 300 × 230 mm
- Base cabinet (W × D)
- 450 × 500 mm
- Material
- Plastic
- Capacity
- 12 litres
- Height × Depth × Width
- 340 × 300 × 150 mm
- Base cabinet (W × D)
- —
- Material
- Plastic
"—" means the base-cabinet size is not listed for that model. Contact our team for the full model list and cabinet fit.
Swing — Door-Opening Rotating Bin with Airtight Lid
Swing is an automatic-opening rotating system that moves with the cabinet door and seals the container airtight. It is made of polypropylene and fibreglass-reinforced nylon, and it transfers the weight of the bin to the cabinet side rather than the door, so the door is not stressed over time. It can be mounted on the left or right of the base, or stacked, and the 12, 18 or 24-litre containers can be subdivided for waste separation.
Key features
- Opens automatically with the door; airtight seal on the container
- Polypropylene and fibreglass-reinforced nylon construction
- Weight carried on the cabinet side, not the door
- Adjustable drag system fits all door types; mounts left, right or stacked
- 12, 18 and 24-litre containers, which can be subdivided for segregation
Technical specifications
| Model | Capacity | Height × Depth × Width | Base cabinet (W × D) | Material |
|---|---|---|---|---|
| PBN ASG44 | 24 litres | 460 × 260 × 340 mm | 450 × 500 mm | Plastic |
| PBN ASG34 | 18 litres | 360 × 260 × 340 mm | 450 × 500 mm | Plastic |
| PBN ASG22 | 12 litres | 240 × 260 × 340 mm | 450 × 500 mm | Plastic |
- Capacity
- 24 litres
- Height × Depth × Width
- 460 × 260 × 340 mm
- Base cabinet (W × D)
- 450 × 500 mm
- Material
- Plastic
- Capacity
- 18 litres
- Height × Depth × Width
- 360 × 260 × 340 mm
- Base cabinet (W × D)
- 450 × 500 mm
- Material
- Plastic
- Capacity
- 12 litres
- Height × Depth × Width
- 240 × 260 × 340 mm
- Base cabinet (W × D)
- 450 × 500 mm
- Material
- Plastic
Which Mirano Waste Bin Is Right for Your Kitchen?
A side-by-side view of the range to help you specify quickly.
- Format
- Pull-out, under sink
- Capacity
- 16.5 + 16.5 + 10 L
- Segregation / feature
- Three-way, utility zone
- Best for
- Sink cabinet needing segregation and cleaning storage
- Format
- Pull-out, automatic lid
- Capacity
- 33 + 33 L (twin-bin)
- Segregation / feature
- Twin bins, 50 kg slides
- Best for
- Premium kitchens, high-volume waste
- Format
- Pull-out, wire frame
- Capacity
- 18 to 48 L total
- Segregation / feature
- Single to four bins
- Best for
- 300 / 400 mm base cabinets
- Format
- Under-drawer insert
- Capacity
- 20 to 60 L total
- Segregation / feature
- 2, 3 or 4 bins per drawer
- Best for
- Wide drawers, 500 to 1,200 mm
- Format
- Door-mounted, auto-opening
- Capacity
- 12 / 18 / 24 L
- Segregation / feature
- Airtight; container can be subdivided
- Best for
- Standard 450 mm base cabinets
- Format
- Door-mounted, fixed to door
- Capacity
- 12 / 24 L
- Segregation / feature
- Single bin
- Best for
- Cabinets where a pull-out is impractical
- Format
- Door-mounted, round, rotating
- Capacity
- 10 L
- Segregation / feature
- Single bin
- Best for
- Narrow and compact cabinets
How to Choose the Right Kitchen Dustbin System
Four questions settle most specifications. Answer them against the cabinet drawing before the BOQ is signed.
1. What cabinet or drawer is available?
Measure the internal width and depth. Ecofil suits 300 and 400 mm base cabinets, Swing is built for a 450 mm base, Ring for a 400 mm base, and Metropolis covers drawers from 500 to 1,200 mm. Globe 2.0 and Movebin are selected by kit code for the sink cabinet; send us the cabinet size and we will match the code.
2. Pull-out, under-drawer or door-mounted?
Pull-out systems (Movebin, Globe 2.0, Ecofil) carry the bins on slides or a frame and give the most capacity. Metropolis turns an existing drawer into a waste drawer. Door-mounted bins (Swing, Swing Out, Ring) move with the door and need no runners, which keeps installation simple in narrow cabinets.
3. How much segregation is needed?
Movebin separates three streams, Ecofil and Metropolis offer two to four bins, and Globe 2.0 is configured as a twin-bin unit. Swing containers can be subdivided inside one bin. If wet and dry waste must be separated at source, pick a multi-bin system rather than a single bin.
4. How heavy and how frequent is the use?
Globe 2.0 is rated for 50 kg on its soft-closing slides, which suits a busy family kitchen. For lighter daily use, door-mounted bins carry their weight on the cabinet side, not the door. Check the rating against the real load, not the bin volume alone.
Built-In Kitchen Dustbin vs Freestanding Dustbin
| Factor | Freestanding dustbin | Built-in system |
|---|---|---|
| Floor and counter space | Takes visible floor or counter space | Sits inside the cabinet, out of sight |
| Waste segregation | Needs separate bins placed around the kitchen | Multi-bin units keep wet, dry and recyclable waste in one place |
| Odour and hygiene | Open or lid-only; odour stays in the room | Closed behind the door; lid and filter options on selected systems |
| Cabinet planning | None needed | Specify width, depth and door fixing at the design stage |
| Everyday access | Bin sits on the floor | Bin comes out with the drawer or door |
Why Specify Waste Bins from Mirano
Complete specifications
Every system on this page lists capacity, dimensions, cabinet fit and model codes, so the specification can go straight into the cabinet drawing.
Four formats, one supplier
Pull-out, under-drawer and door-mounted bins, so one order can cover the sink cabinet, the waste drawer and the narrow filler unit.
Italian-engineered hardware
Mirano supplies Italian-engineered kitchen fittings, including pull outs, drawer systems and waste bins, across India.
Specification support
Send the cabinet width and depth and our team will confirm the model code, kit size and door-fixing requirements before you order.
Supplied to Kitchen Professionals Across India
Modular kitchen manufacturers
Bulk and OEM enquiries for waste bin systems built into your cabinet range.
Dealers and distributors
A defined range with model codes and sizes that is simple to stock and quote. See the dealer programme on our Dealers page.
Carpenters and fabricators
Clear cabinet-size data for each model, so the carcass is cut right the first time.
Interior designers and architects
Capacity and segregation options by cabinet size, ready for the kitchen specification sheet.
Frequently Asked Questions
Specify hardware that elevates every interior.
Talk to our specification team for samples, project quotes and dealer enquiries. We respond within one business day.
